病虫害AI识别系统-微信小程序


开发工具及语言

开发工具:

微信小程序开发工具
	HBuilder X

涉及语言:

vue3,uniapp,mysql,python,nodejs

注:电脑必须由这些环境

前端部署

首先确保您的电脑正确安装node如果没有安装请去以下途径安装

https://nodejs.org/zh-cn

解压程序,在根目录运行

安装完成使用以下命令更换国内镜像源

npm config set registry https://registry.npmmirror.com

设置完成后,在文件根目录调出cmd输入

npm install -g @vue/cli

然后安装所需要的模块

npm update

使用HBuilder X打开项目修改 src\dataurl.js中的IP为服务端IP

const BASE_URL = 'http://127.0.0.1:3000';
export default BASE_URL;

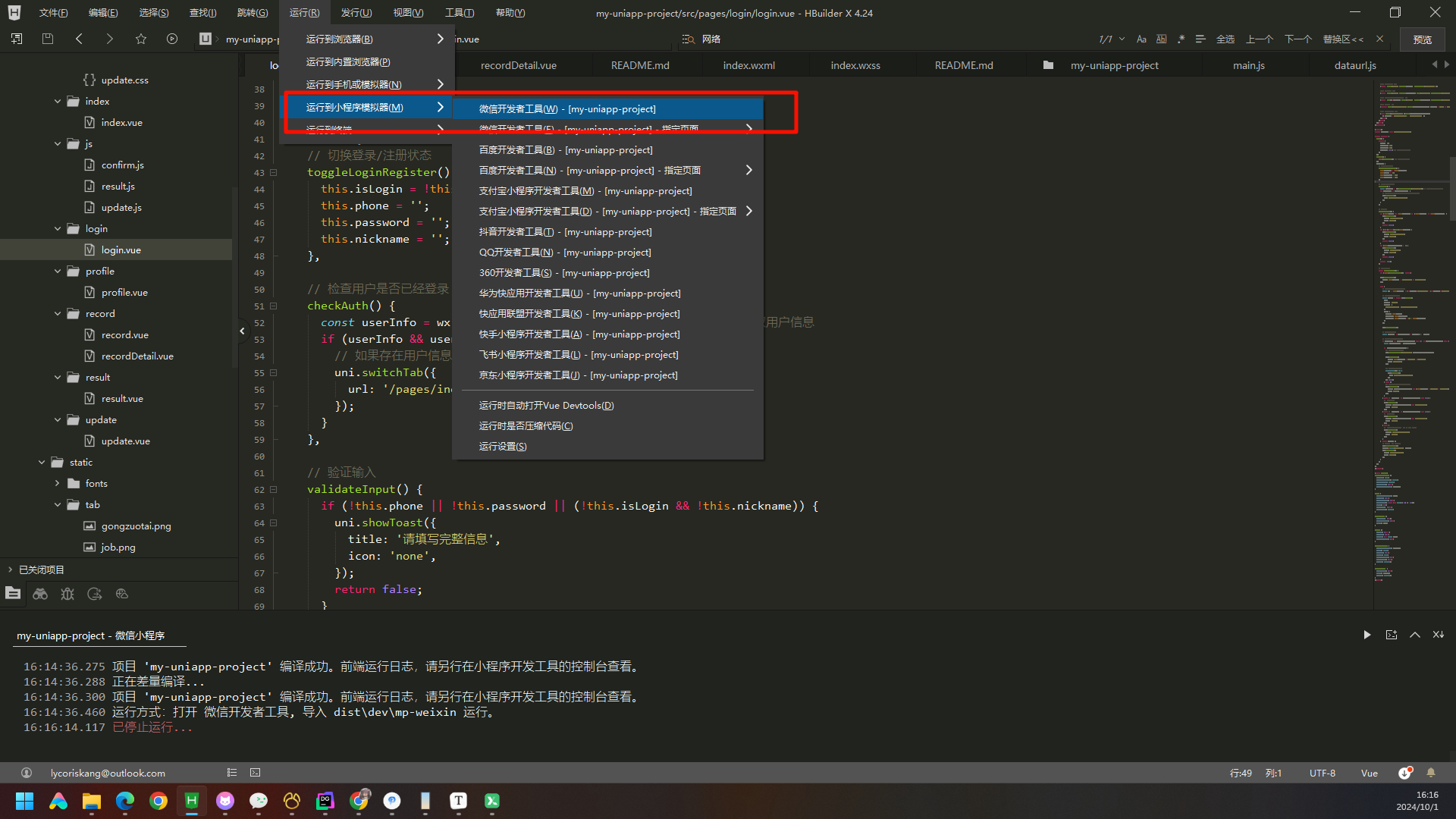

然后以微信小程序模式运行

image-20241001161643074

后端部署

1. 环境要求

  • Python 3.x
  • MySQL 数据库
  • Flask
  • Flask-CORS
  • Flask-MySQL-Connector
  • Werkzeug
  • requests
  • jwt

确保您的服务器上已经安装了上述依赖项,如果没有,可以使用以下命令安装:

pip install Flask Flask-CORS flask-mysql-connector werkzeug requests PyJWT

2. 数据库配置

首先,创建一个名为 my_vx_app 的数据库,并在数据库中创建以下表:

用户表:users

CREATE TABLE users (
    id INT AUTO_INCREMENT PRIMARY KEY,
    phone VARCHAR(20) NOT NULL UNIQUE,
    password VARCHAR(255) NOT NULL,
    nickname VARCHAR(255),
    created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP
);

识别记录表:processed_images

CREATE TABLE processed_images (
    id INT AUTO_INCREMENT PRIMARY KEY,
    user_id INT NOT NULL,
    image_path VARCHAR(255) NOT NULL,
    processed_text TEXT,
    created_at TIMESTAMP DEFAULT CURRENT_TIMESTAMP,
    FOREIGN KEY (user_id) REFERENCES users(id) ON DELETE CASCADE
);

3. 配置server.pyai-api.py

server.py

# server.py
from flask import Flask, jsonify, request, send_from_directory, session
from flask_cors import CORS
from flask_mysql_connector import MySQL
from werkzeug.security import generate_password_hash, check_password_hash
import requests
import base64
import os
import uuid
import jwt
from datetime import datetime, timedelta
from functools import wraps

app = Flask(__name__)
app.config['SECRET_KEY'] = 'your_secret_key'  # 请替换为您的密钥

# MySQL 数据库配置
app.config['MYSQL_HOST'] = 'localhost'
app.config['MYSQL_USER'] = 'root'
app.config['MYSQL_PASSWORD'] = '1234'  # 替换为您的 MySQL 密码
app.config['MYSQL_DATABASE'] = 'my_vx_app'
mysql = MySQL(app)

# 允许跨域请求
CORS(app, supports_credentials=True)

# 设置图片上传目录
UPLOAD_FOLDER = 'uploads'
if not os.path.exists(UPLOAD_FOLDER):
    os.makedirs(UPLOAD_FOLDER)

# 生成 Token
def generate_token(user_id):
    payload = {
        'exp': datetime.utcnow() + timedelta(hours=1),  # Token 有效期1小时
        'iat': datetime.utcnow(),
        'sub': user_id
    }
    return jwt.encode(payload, app.config['SECRET_KEY'], algorithm='HS256')

# 验证 Token 的装饰器
def token_required(f):
    @wraps(f)
    def decorated(*args, **kwargs):
        token = None
        if 'Authorization' in request.headers:
            token = request.headers['Authorization'].split(" ")[1]

        if not token:
            return jsonify({"success": False, "message": "Token is missing"}), 401

        try:
            data = jwt.decode(token, app.config['SECRET_KEY'], algorithms=['HS256'])
            current_user_id = data['sub']
        except jwt.ExpiredSignatureError:
            return jsonify({"success": False, "message": "Token has expired"}), 401
        except jwt.InvalidTokenError:
            return jsonify({"success": False, "message": "Invalid token"}), 401

        return f(current_user_id, *args, **kwargs)

    return decorated

# 注册用户
@app.route('/api/register', methods=['POST'])
def register():
    data = request.json
    phone = data.get('phone')
    password = data.get('password')
    nickname = data.get('nickname')

    conn = mysql.connection
    cursor = conn.cursor(dictionary=True)
    cursor.execute("SELECT * FROM users WHERE phone = %s", (phone,))
    existing_user = cursor.fetchone()

    if existing_user:
        return jsonify({"success": False, "message": "该手机号已注册"}), 400

    hashed_password = generate_password_hash(password)
    cursor.execute("INSERT INTO users (phone, password, nickname) VALUES (%s, %s, %s)",
                   (phone, hashed_password, nickname))
    conn.commit()
    cursor.close()

    return jsonify({"success": True, "message": "注册成功", "userInfo": {"phone": phone, "nickname": nickname}}), 201

# 用户登录
@app.route('/api/login', methods=['POST'])
def login():
    data = request.json
    phone = data.get('phone')
    password = data.get('password')

    conn = mysql.connection
    cursor = conn.cursor(dictionary=True)
    cursor.execute("SELECT * FROM users WHERE phone = %s", (phone,))
    user = cursor.fetchone()
    cursor.close()

    if not user or not check_password_hash(user['password'], password):
        return jsonify({"success": False, "message": "账号或密码错误"}), 401

    token = generate_token(user['id'])
    return jsonify({"success": True, "message": "登录成功", "userInfo": {"phone": user['phone'], "nickname": user['nickname'], "token": token}}), 200

@app.route('/api/changePassword', methods=['POST'])
@token_required
def change_password(current_user_id):
    data = request.json
    old_password = data.get('oldPassword')
    new_password = data.get('newPassword')

    # 查询用户信息
    conn = mysql.connection
    cursor = conn.cursor(dictionary=True)
    cursor.execute("SELECT * FROM users WHERE id = %s", (current_user_id,))
    user = cursor.fetchone()

    if not user or not check_password_hash(user['password'], old_password):
        return jsonify({"success": False, "message": "旧密码错误"}), 401

    # 更新密码
    hashed_new_password = generate_password_hash(new_password)
    cursor.execute("UPDATE users SET password = %s WHERE id = %s", (hashed_new_password, current_user_id))
    conn.commit()
    cursor.close()

    return jsonify({"success": True, "message": "密码修改成功"}), 200


# 用户登出
@app.route('/api/logout', methods=['POST'])
@token_required
def logout(current_user_id):
    # 清除会话或 Token(这里根据实际需要实现)
    return jsonify({"success": True, "message": "已退出登录"}), 200

# 获取识别记录
@app.route('/api/getRecords', methods=['GET'])
@token_required
def get_records(current_user_id):
    conn = mysql.connection
    cursor = conn.cursor(dictionary=True)
    cursor.execute("SELECT id, image_path, processed_text, created_at FROM processed_images WHERE user_id = %s ORDER BY created_at DESC", (current_user_id,))
    records = cursor.fetchall()
    cursor.close()

    for record in records:
        record['image_path'] = f"{request.url_root}uploads/{os.path.basename(record['image_path'])}"

    return jsonify({"success": True, "records": records}), 200

# 获取单条记录的详细信息
@app.route('/api/getRecordDetail', methods=['GET'])
@token_required
def get_record_detail(current_user_id):
    record_id = request.args.get('id')
    conn = mysql.connection
    cursor = conn.cursor(dictionary=True)
    cursor.execute("SELECT id, image_path, processed_text, created_at FROM processed_images WHERE id = %s AND user_id = %s", (record_id, current_user_id))
    record = cursor.fetchone()
    cursor.close()

    if not record:
        return jsonify({"success": False, "message": "记录不存在"}), 404

    record['image_path'] = f"{request.url_root}uploads/{os.path.basename(record['image_path'])}"
    return jsonify({"success": True, "record": record}), 200

# 提供静态文件服务
@app.route('/uploads/<filename>', methods=['GET'])
def get_uploaded_file(filename):
    try:
        return send_from_directory(UPLOAD_FOLDER, filename)
    except Exception as e:
        return jsonify({"success": False, "message": f"Error loading image: {str(e)}"}), 500

# 处理用户上传的图片
@app.route('/api/processImage', methods=['POST'])
@token_required
def process_image(current_user_id):
    file = request.files.get('file')
    if not file:
        return jsonify({"success": False, "message": "没有上传文件"}), 400

    image_id = str(uuid.uuid4())
    filename = f"{image_id}.png"
    file_path = os.path.join(UPLOAD_FOLDER, filename)
    file.save(file_path)

    with open(file_path, "rb") as img_file:
        base64_image = base64.b64encode(img_file.read()).decode('utf-8')

    external_service_url = 'http://127.0.0.1:5000/process'
    try:
        response = requests.post(external_service_url, json={"image": base64_image})
        response_data = response.json()

        if response.status_code == 200 and 'text' in response_data:
            processed_text = response_data['text']
            conn = mysql.connection
            cursor = conn.cursor()
            cursor.execute("INSERT INTO processed_images (user_id, image_path, processed_text) VALUES (%s, %s, %s)",
                           (current_user_id, file_path, processed_text))
            conn.commit()
            cursor.close()

            return jsonify({"success": True, "imageUrl": f"http://127.0.0.1:3000/uploads/{filename}", "text": processed_text}), 200
        else:
            return jsonify({"success": False, "message": "外部服务处理失败"}), 500

    except requests.RequestException as e:
        print(f"请求外部服务接口失败: {e}")
        return jsonify({"success": False, "message": "外部服务请求失败"}), 500

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=3000)

ai-api.py(只用于测试,实际对接您的图像api)

# ai-api.py
from flask import Flask, request, jsonify
import base64
import time

app = Flask(__name__)

# 模拟外部接口处理图像的接口
@app.route('/process', methods=['POST'])
def process_image():
    data = request.json
    image_base64 = data.get("image")

    if not image_base64:
        return jsonify({"success": False, "message": "未收到图像数据"}), 400

    try:
        # 模拟图像处理
        image_data = base64.b64decode(image_base64)

        # 在这里可以模拟保存或者处理图像
        time.sleep(2)  # 模拟处理时间

        # 模拟处理结果文本
        processed_text = "这是模拟的处理结果文本"

        # 返回处理后的结果
        return jsonify({"success": True, "text": processed_text}), 200

    except Exception as e:
        print(f"图像处理失败: {e}")
        return jsonify({"success": False, "message": "图像处理失败"}), 500

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000)

  • 确保将server.py中的以下配置项替换为您自己的值:
    • app.config['SECRET_KEY'] - 替换为您的密钥
    • app.config['MYSQL_HOST'] - 数据库主机
    • app.config['MYSQL_USER'] - 数据库用户名
    • app.config['MYSQL_PASSWORD'] - 数据库密码

4. 运行 Flask 应用程序

首先,确保在项目根目录中创建一个名为 uploads 的文件夹,用于存储用户上传的图片:

mkdir uploads

然后,启动 server.pyai-api.py

python server.py
python ai-api.py
  • server.py 将在 http://localhost:3000 上运行
  • ai-api.py 将在 http://localhost:5000 上运行

5. 访问 API

以下是一些可用的 API 端点:

  • 注册: POST /api/register
  • 登录: POST /api/login
  • 修改密码: POST /api/changePassword
  • 登出: POST /api/logout
  • 上传图片并识别: POST /api/processImage
  • 获取识别记录: GET /api/getRecords
  • 获取单条记录详细信息: GET /api/getRecordDetail

6. 注意事项

  • ai-api.py 模拟了一个外部图像处理服务,因此在生产环境中,您可能需要替换为实际的图像处理服务。
  • 在实际生产环境中,请确保使用更强的加密密钥,并启用 HTTPS 以提高安全性。

按照以上步骤,您应该能够顺利部署和运行您的应用程序。
